titanium nitride
Product Description

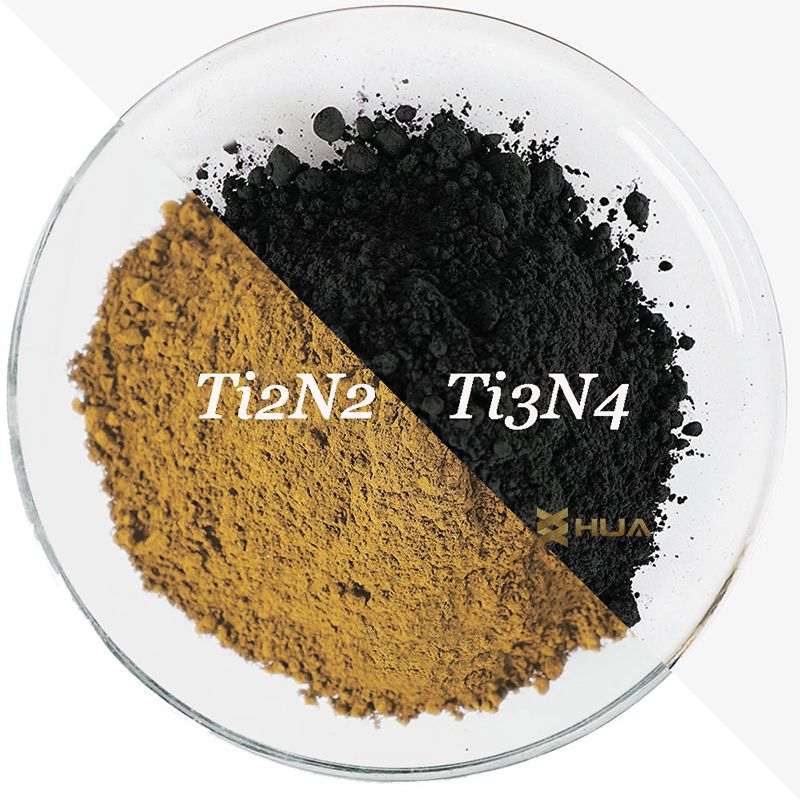

Titanium nitride is a new material with excellent properties, titanium nitride is an orange-red metal nitride, with high hardness, high melting point and high modulus, and has good thermal conductivity and thermal shock resistance. It is widely used in the fields of tool materials, wear-resistant coating and high temperature coating. It has excellent wear resistance and can significantly improve tool life and cutting performance. In addition, titanium nitride can also be used as a sealing material and structural material at high temperatures.
Specification details
|
Titanium nitride powder composition |
|||
|
Item |
TiN-1 |
TiN-2 |
TiN-3 |
|
Purity |
>99.0 |
>99.5 |
>99.9 |
|
N |
20.5 |
>21.5 |
17.5 |
|
C |
<0.1 |
<0.1 |
0.09 |
|
O |
<0.8 |
<0.5 |
0.3 |
|
Fe |
0.35 |
<0.2 |
0.25 |
|
Density |
5.4g/cm3 |
5.4g/cm3 |
5.4g/cm3 |
|
size |
<1micron 1-3micron |
||
|
3-5micron 45micron |
|||
|
thermal expansion |
(10-6K-1):9.4 dark/yellow powder |
||

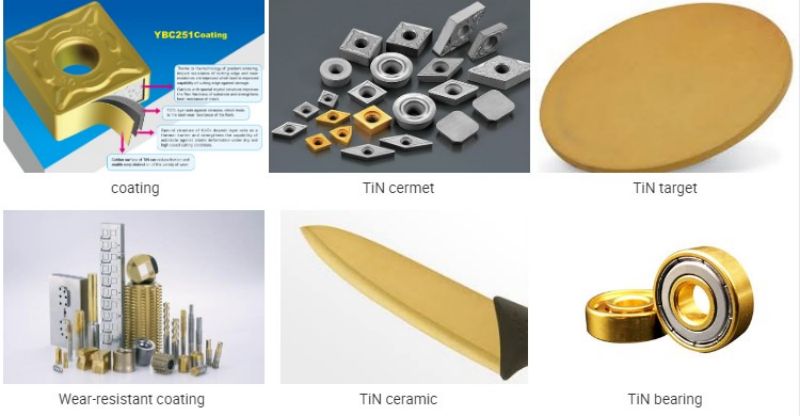

Application
Titanium Nitride (TiN) Product Main Applications
1. It is used for wear resistance, high temperature resistance fields such as manufacturing cemented carbide, cutting tools, molds, melting metal crucible, etc
2. It is used as a wear-resistant and corrosion-resistant coating on the surface of the material, such as depositing a TiN coating on the cutting tool, which can greatly improve the wear resistance of the tool and prolong the service life of the cutting tool;
3. As a ceramic material, it is used to produce titanium nitride ceramic products, titanium nitride targets, etc.;
4. As a high temperature lubricant, it has a low coefficient of friction and can be used as bearings and seal rings;
5. As a conductive material for electrodes, electrical joints, thin film resistors, etc. of molten salt electrolysis, it has good electrical conductivity;
6. As an imitation gold material used in jewelry industry and decoration industry, it is both beautiful and anti-corrosion, prolonging the life of handicrafts
