3D Printing Niobium（Nb）Metal Powder for Metallurgical Purposes
Product Description
Niobium metal powder, melting point 2468℃, boiling point 4742℃, density 8.57g/cm3. Widely used in stainless steel products, superconducting magnets, powder metallurgy, welding materials and other fields. Niobium metal powder has two forms, spherical and non-spherical. 3D printing, laser cladding, plasma spraying and other fields.
Specification
|
Chemical Composition(wt.%) |
|||
|
Element |
Grade Nb-1 |
Grade Nb-2 |
Grade Nb-3 |
|
Ta |
30 |
50 |
100 |
|
O |
1500 |
2000 |
3000 |
|
N |
200 |
400 |
600 |
|
C |
200 |
300 |
500 |
|
H |
100 |
200 |
300 |
|
Si |
30 |
50 |
50 |
|
Fe |
40 |
60 |
60 |
|
W |
20 |
30 |
30 |
|
Mo |
20 |
30 |
30 |
|
Ti |
20 |
30 |
30 |
|
Mn |
20 |
30 |
30 |
|
Cu |
20 |
30 |
30 |
|
Cr |
20 |
30 |
30 |
|
Ni |
20 |
30 |
30 |
|
Ca |
20 |
30 |
30 |
|
Sn |
20 |
30 |
30 |
|
Al |
20 |
30 |
30 |
|
Mg |
20 |
30 |
30 |
|
P |
20 |
30 |
30 |
|
S |
20 |
30 |
30 |

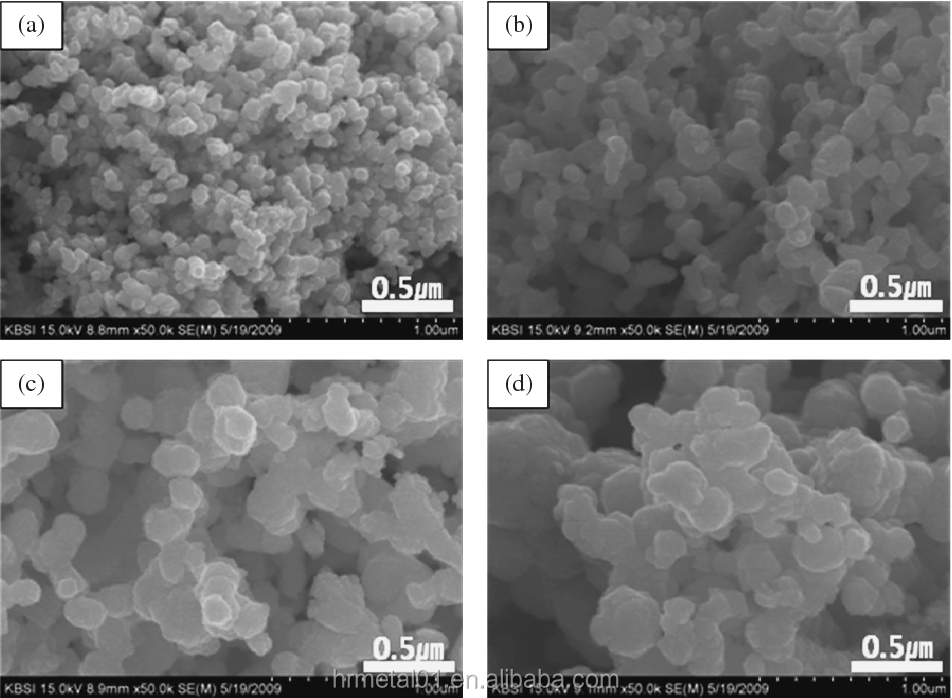

SEM
Application
1. Niobium is a very important superconducting material to produce high-capacity capacitor.
2. Niobium powder is also used to produce tantalum.
3. The pure Niobium metal powder or Niobium Nickel alloy is used to make Nickel, Chrome and Iron base high temperature alloy.
4. Adding 0.001% to 0.1% Niobium powder to change the mechanical properties of steel 5. Used as sealed material of the arc tube.
Quality control system
Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.
Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
