nickel coated copper powder for Conductive filling materials

nickel coated copper powder for Conductive filling materials

Short Description:

  • Product name: nickel coated copper powder
  • Color: Black
  • Shape: Powder
  • Chemical Composition: Ni,Cu
  • Apparent Density(g/cm3) : 1.3-1.7g/cm3
  • Boiling point: 2212℃(lit.)
  • Melting point: 960(lit.)
  • Specific Surface Area: 30-50m2/g
  • Ratio: Cu:Ni=7:3 or customizable
  • Sample: Available
  • MOQ: 5kg
  • Brand Name: HUARUI
  • Place of Origin: Sichuan,China
  • Product Detail

    Product Description

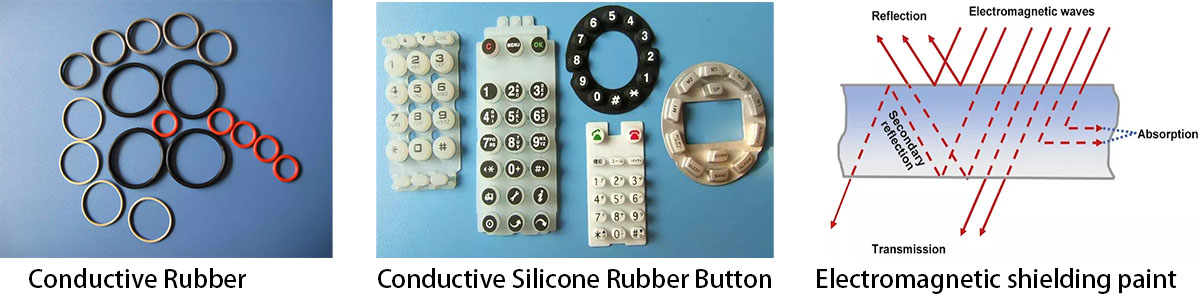

    Huarui Ni-Cu powder produce with special plating bath composition and process conditions, the nickel-clad copper powder produced with nickel content of 30% nickel-coated copper powder has good bulk density and good electrical conductivity, and is an ideal electromagnetic shielding material. It is widely used in the filling of conductive silicone rubber. The good conductivity of nickel-coated copper powder in conductive silicone rubber, a new type of high molecular material filled in silicone rubber in a certain proportion, combines water vapor sealing performance with high conductivity. Together, complete environmental and electromagnetic sealing.






    Nickel-coated copper powder Ni30Cu coated Corrosion resistance, high temperature resistance, good electrical and thermal conductivity, suitable for corrosion protection

    under seawater conditions, resistance to atmospheric corrosion and acid-base corrosion, coating has high strength, resistance to

    bite wear and erosion, can also be used for electromagnetic shielding, machine tools Guide rail, working temperature <300 ℃

    Aluminum coated nickel powder Ni5Al coated The coating is dense, used to resist high temperature oxidation and wear, generate exothermic reaction, self-adhesive primer, good

    processing performance, repair carbon steel and stainless steel parts, can be used for exhaust muffler, valve seat high

    temperature oxidation and erosion wear , Working temperature <800 ℃

    Nickel chromium powder   coated Anti-oxidation and anti-wear, anti-oxidation coating, the coating is rougher than LF201, working temperature <650 ℃
    Nickel coated alumina powder Ni75Al2O3 coated Corrosion resistance, wear resistance, high temperature resistance, oxidation resistance, thermal shock resistance, thermal

    conductive coating, working temperature <800 ℃

    Nickel-coated molybdenum disulfide powder Ni25MoS2 coated Anti-friction coating, good lubricity, good chemical and thermal stability, applied to dynamic seal, low friction material,

    working temperature <150 ℃

    Nickel coated diamond powder Ni(20-25)


    coated High hardness, wear resistance, erosion resistance, can be used as abrasion and cutting material, can be used as filler for powder

    metallurgy, working temperature <350 ℃

    Nickel chromium powder Ni50Cr Gas atomization Resistant to high temperature oxidation and corrosion of sulfur and vanadium, used in the corrosion prevention of oil-fired

    coal-fired boilers, has better corrosion resistance than LX45, and can also be used as a corrosion-resistant primer layer, with an

    operating temperature of less than 1,000 ° C



    Quality control system

    quality control

    Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.

    Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
