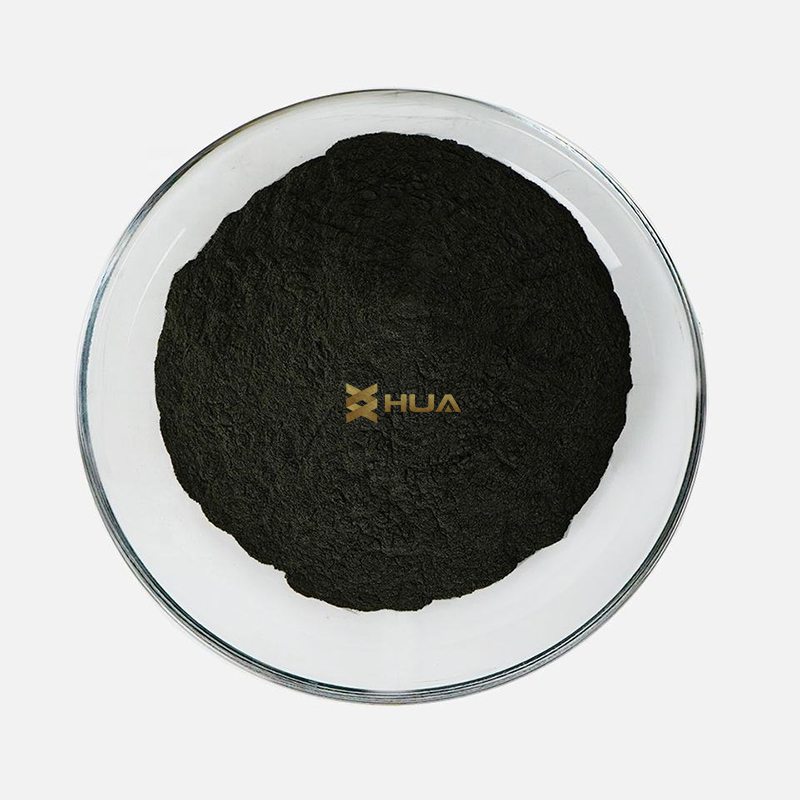

Titanium Carbonitride Powder CAS 12654-86-3 TiCN Titanium Carbide Nitride Powder
Product Description
Titanium carbon nitride powder is a kind of excellent performance, widely used non-oxide ceramic material, with the advantages of TiC and TiN, it has high melting point, high hardness, corrosion resistance and oxidation resistance, and has good thermal conductivity and electrical conductivity chemical stability, suitable for machinery, chemical industry, automobile manufacturing and aerospace and many other fields.
Specification
|
TiCN Titanium Carbide Nitride Powder Composition % |
||||||||
|
Grade |
TiCN |
Ti |
N |
T.C |
F.C |
O |
Si |
Fe |
|
≧ |
≤ |
≤ |
≤ |
|||||
|
TiCN-1 |
98.5 |
75-78.5 |
12-13.5 |
7.8-9.5 |
0.15 |
0.3 |
0.02 |
0.05 |
|
TiCN-2 |
99.5 |
76-78.9 |
10-11.8 |
9.5-10.5 |
0.15 |
0.3 |
0.02 |
0.05 |
|
TiCN-3 |
99.5 |
77.8-78.5 |
8.5-9.8 |
10.5-11.5 |
0.2 |
0.4 |
0.4 |
0.05 |
|
Size |
1-2um, 3-5um, |
|||||||
|
Customized size |
||||||||

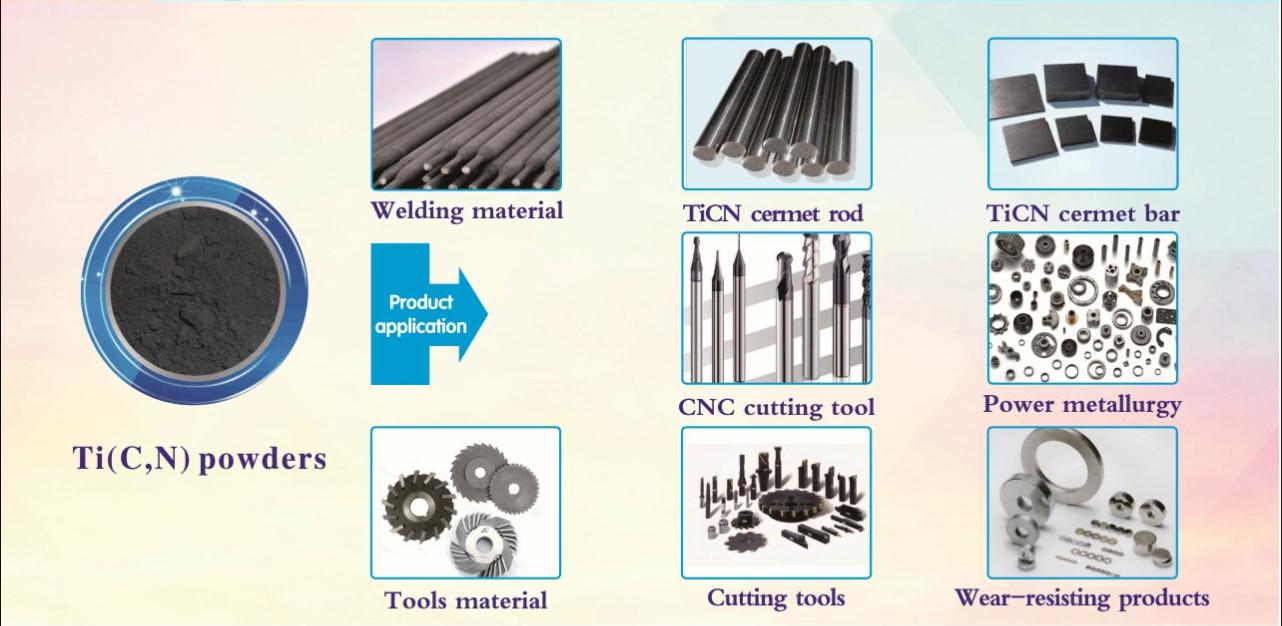

Application
1. Ti(C,N)-based cermet cutting tools
Ti(C,N)-based cermet is a very important structural material. Compared with WC-based cemented carbide, the tool prepared with it shows higher red hardness, similar strength, thermal conductivity and friction coefficient in processing. It has a higher lifespan or can adopt a higher cutting speed under the same lifespan, and the processed workpiece has a better surface finish.
2. Ti(C,N)-based cermet coating
Ti(C,N)-based cermet can be made into wear-resistant coatings and mold materials. Ti(C,N) coating has excellent mechanical and tribological properties. As a hard and wear-resistant coating, it has been widely used in cutting tools, drills and molds, and has broad application prospects.
3. Composite ceramic materials
TiCN powder can be combined with other ceramics to form composite materials, such as TiCN/Al2O3, TiCN/SiC, TiCN/Si3N4, TiCN/TiB2. As a reinforcement, TiCN powder can improve the strength and fracture toughness of the material, and can also improve the electrical conductivity.
4. Refractory materials
Adding non-oxides to refractory materials will bring some excellent properties. Studies have shown that the presence of titanium carbonitride powder can significantly improve the performance of refractory materials.
