Ultra Fine Bronze Powder Metal Price Atomized Copper Bronze Powder
Product Description
Ultra Fine Sintering 325 Mesh Metal Price Copper Bronze Powder
Bronze powders are manufactured by water-atomising or air-atomising. In addition, we can offer Dendritic Bronze Powders (see “Speciality Powders”) produced via a sinter-diffusion bonding route to give irregular, spherical and dendritic morphologies respectively. Properties and, therefore, uses vary with particle shape / size / surface area, composition and by carefully selecting the correct grade, bronze powders find applications in diverse markets and technologies.
Specification
| Copper Bronze powder parameter | |||||
| Grade | Composites | size(mesh) | Apparent density,g/cm3 | Hall flow, s/50g | Laser D50,um |
| FBro-1-1 | Cu90Sn10 | -80 | 2.3-3.2 | <35 | -- |
| FBro-1-2 | -200 | 3.0-4.5 | -- | ||
| FBro-1-3 | -325 | 3.2-4.5 | 10-25 | ||
| FBro-2-1 | Cu85Sn15 | -200 | 3.2-4.5 | <35 | -- |
| FBro-2-2 | -325 | 10-25 | |||
| FBro-3-1 | Cu80Sn20 | -200 | 3.2-4.5 | <35 | -- |
| FBro-3-2 | -325 | 10-25 | |||
| FBro-4-1 | Cu72.5Sn27.5 | -200 | 3.2-4.5 | <35 | -- |
| FBro-4-2 | -325 | -- | |||
| FBro-5-1 | Cu67Sn33 | -200 | 3.2-4.5 | <35 | -- |
| FBro-5-2 | -325 | 10-25 | |||
| FBro-6-1 | Cu60Sn40 | -200 | 3.2-4.5 | <35 | -- |
| FBro-6-2 | -325 | 10-25 | |||
| FBro-12-1 | Cu80Zn20 | -100 | 2.3-2.8 | <30 | -- |
| FBro-12-2 | -200 | 3.2-4.0 | <35 | -- | |
| FBro-13-1 | Cu70Zn30 | -100 | 2.3-2.8 | <30 | -- |
| FBro-13-2 | -200 | 3.2-4.0 | <35 | -- | |
| FBro-14 | CuSn13Ti7 | -200 | 2.0-2.8 | <40 | -- |
| DC-1 | CuZn | -100 | 2.4-3.0 | <30 | -- |
| DC-2 | CuZnSn | -100 | 2.4-3.0 | <30 | -- |

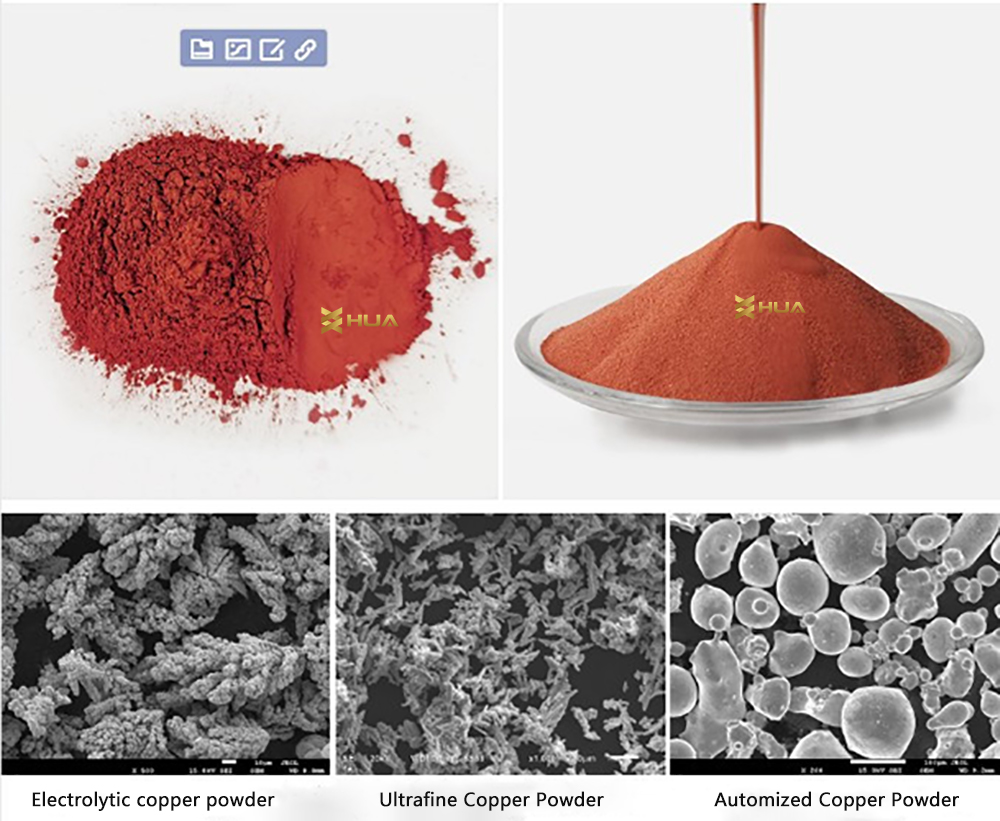

SEM
Application
1. Manufacturing high precision, ultra fine, low noise, self-lubricating oil bearing
2. High grade diamond saw blade
3.cold Coat
4.paints / metallic inks for plastics \ toys \ textile printing
Quality control system
1.Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.
2.Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
