HVOF Wc12Co Tungsten Carbide Cobalt Compound Powder

Short Description:

Product name: Tungsten Carbide Compound Powder

Color: Grey

Shape: Spherical Powder

Hardness: HV1000/1200

Flow density: 4.5g/cm3

Flame speed: 2100m/s

Binding strength: 90MPa

Coating porosity: <1%

Application: Thermal spraying

Place of Origin: Sichuan, China

Send email to us

Product Detail

Product Description

WC Compound powder is a high-hardness cobalt-based coating powder, which adopts agglomeration and sintering process. It is a metal cobalt layer coated on the surface of cast tungsten carbide for protection and bonding, which has excellent resistance to abrasive wear and abrasion. The ability to resist high temperature oxidation. Suitable for plasma spraying or supersonic spraying process. Often used in occasions with strong wear and tear.

Specification

Grade ：	WC-Co	WC-Co	WC-CoCr	Cr3C2-NiCr	WC-CrC-Ni	WC-Ni
Production process	Agglomerated & Sintered
Radio	88/12	83/17	86/10/4	25/75	73/20/7	90/10
Grade:	dark gray	dark gray	dark gray
Density	4.3-4.8	4.3-4.8	4.3-4.8	2.3-2.8	4.3-4.8	4.3-4.8
	Typical	Typical	Typical	Typical	Typical	Typical
	4.5	4.5	4.5	2.5	4.5	4.5
Hardness	HV	HV	HV	HV	HV	HV
Hardness	1000/1200	850-1050	1000/1200	700-900	1200-1300	600-800
Deposit efficiency	50-70%	50-70%	50-70%	50-60%	50-60%	50-60%
Size	5-30um	5-30um	5-30um	5-30um	5-30um	5-30um
	10-38um	10-38um	15-45um	10-38um	10-38um	10-38um
	15-45um	15-45um	10-38um	15-45um	15-45um	15-45um
	20-53um	20-53um		20-53um	20-53um	20-53um
	45-90um	45-90um		45-90um	45-90um	45-90um

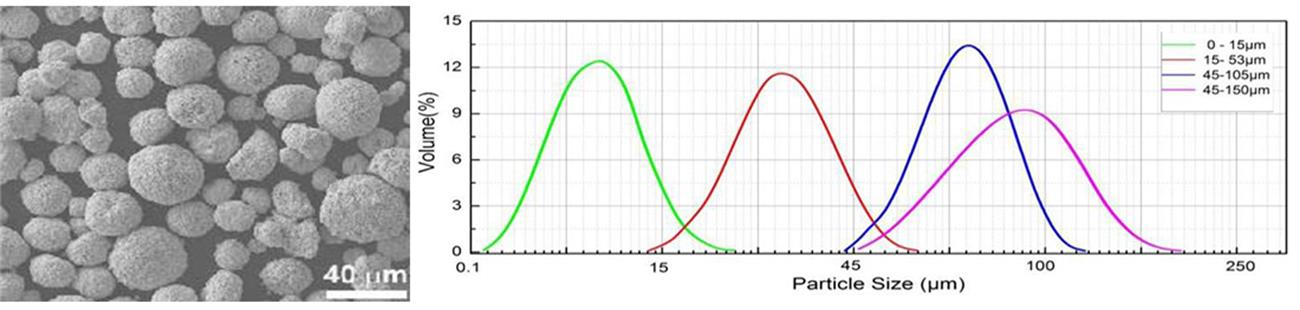

SEM

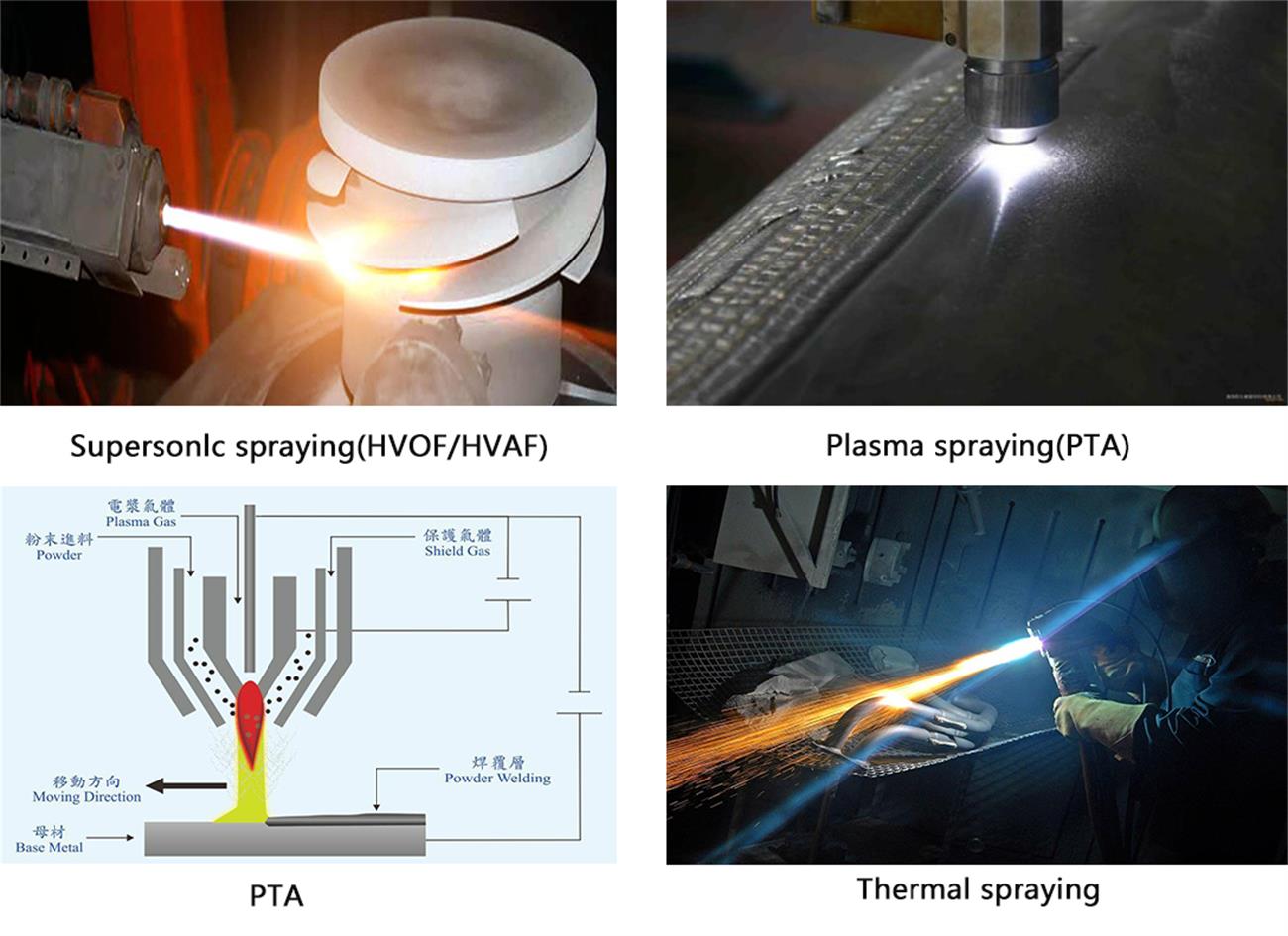

Application

Quality control system

1.Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.

2.Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
