niobium pentoxide powder for optical glass
Product Description
Niobium pentoxide powder is a white or yellowish solid, odorless. Niobium pentoxide powder is insoluble in water, but soluble in molten potassium hydroxide and potassium sulfate, as well as in alkali metal carbonates and hydroxides. In addition, it is also soluble in hydrofluoric acid and hot sulfuric acid. Under certain reaction conditions, niobium pentoxide can react with sodium carbonate, sodium hydroxide, sulfur, carbon and other substances. When heated, niobium pentoxide breaks down to form niobium oxide. Niobium pentoxide powder is an important electronic material, which can be used to make high-purity lithium niobate single crystals, as well as for the preparation of other high-purity oxides. In addition, it can be used as a scientific research reagent.
Specification
| Niobium Pentoxide Nb2o5 Parameter | |
| Compound Formula | Nb2O5 |
| Molecular Weight | 265.81 |
| Appearance | Powder |
| Melting Point | 1512 ℃ (2754 ℃) |
| Boiling Point | N/A |
| Density | 4.47 g/cm3 |
| Solubility in H2O | N/A |
| Exact Mass | 265.787329 |
| Monoisotopic Mass | 265.787329 |
| Powder Niobium Pentoxide Nb2o5 Specification | ||||
| Element | Nb2o5-1 | Nb2o5-2 | Nb2o5-3 | Nb2o5-4 |
| (ppm max) | ||||
| Al | 20 | 20 | 30 | 30 |
| As | 10 | 10 | 10 | 50 |
| Cr | 10 | 10 | 10 | 20 |
| Cu | 10 | 10 | 10 | 20 |
| F | 500 | 1000 | 1000 | 2000 |
| Fe | 30 | 50 | 100 | 200 |
| Mn | 10 | 10 | 10 | 20 |
| Mo | 10 | 10 | 10 | 20 |
| Ni | 20 | 20 | 20 | 30 |
| P | 30 | 30 | 30 | 30 |
| Sb | 50 | 200 | 500 | 1000 |
| Si | 50 | 50 | 100 | 200 |
| Sn | 10 | 10 | 10 | 10 |
| Ta | 20 | 40 | 500 | 1000 |
| Ti | 10 | 10 | 10 | 25 |
| W | 20 | 20 | 50 | 100 |
| Zr+Hf | 10 | 10 | 10 | 10 |
| LOI | 0.15% | 0.20% | 0.30% | 0.50% |
| High-purity niobium oxide powder | |||
| Grade | FHN-1 | FHN-2 | |
| Impurity Content(ppm,max) | Nb2O5 | 99.995min | 99.99min |
| Ta | 5 | 15 | |
| Fe | 1 | 5 | |
| Al | 1 | 5 | |
| Cr | 1 | 2 | |
| Cu | 1 | 3 | |
| Mn | 1 | 3 | |
| Mo | 1 | 3 | |
| Ni | 1 | 3 | |
| Si | 10 | 10 | |
| Ti | 1 | 3 | |
| W | 1 | 3 | |
| Pb | 1 | 3 | |
| Sn | 1 | 3 | |
| F | 50 | 50 | |

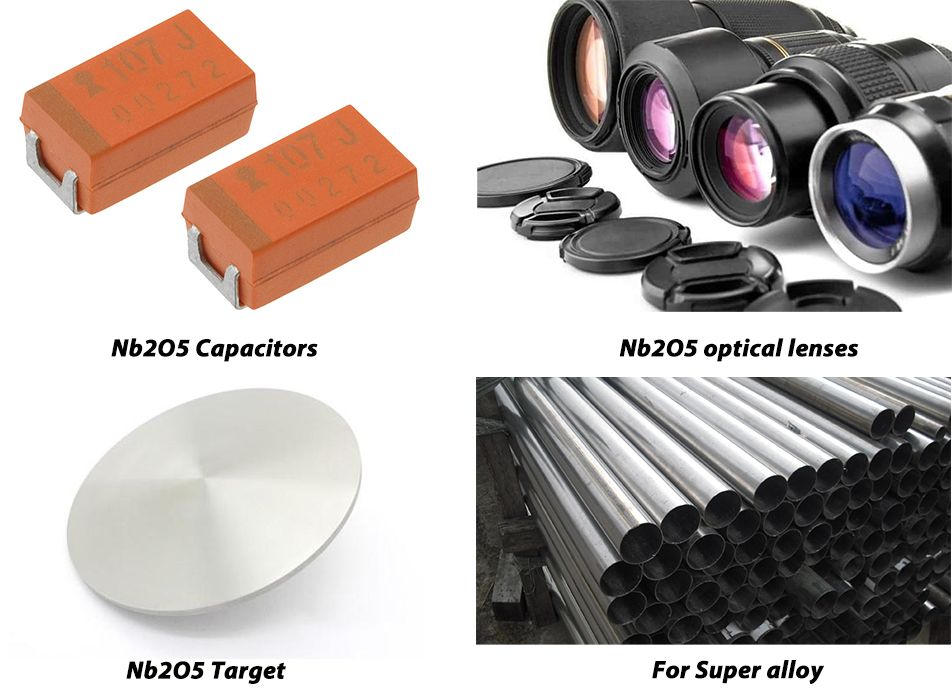

Application
Quality control system
Huarui has strict quality management system. We test our products first after we finish our production, and we test again before every delivery, even sample. And if you need, we would like to accept third party to test. Of course if you like, we could provide sample to you to test.
Our product quality is guaranteed by Sichuan Metallurgical Institute and Guangzhou Institute of Metal Research. The long term cooperation with them can save a lot of testing time for customers.
